ADM-PN-10 · CNC
ADM-PN-10
CNC
Transmission

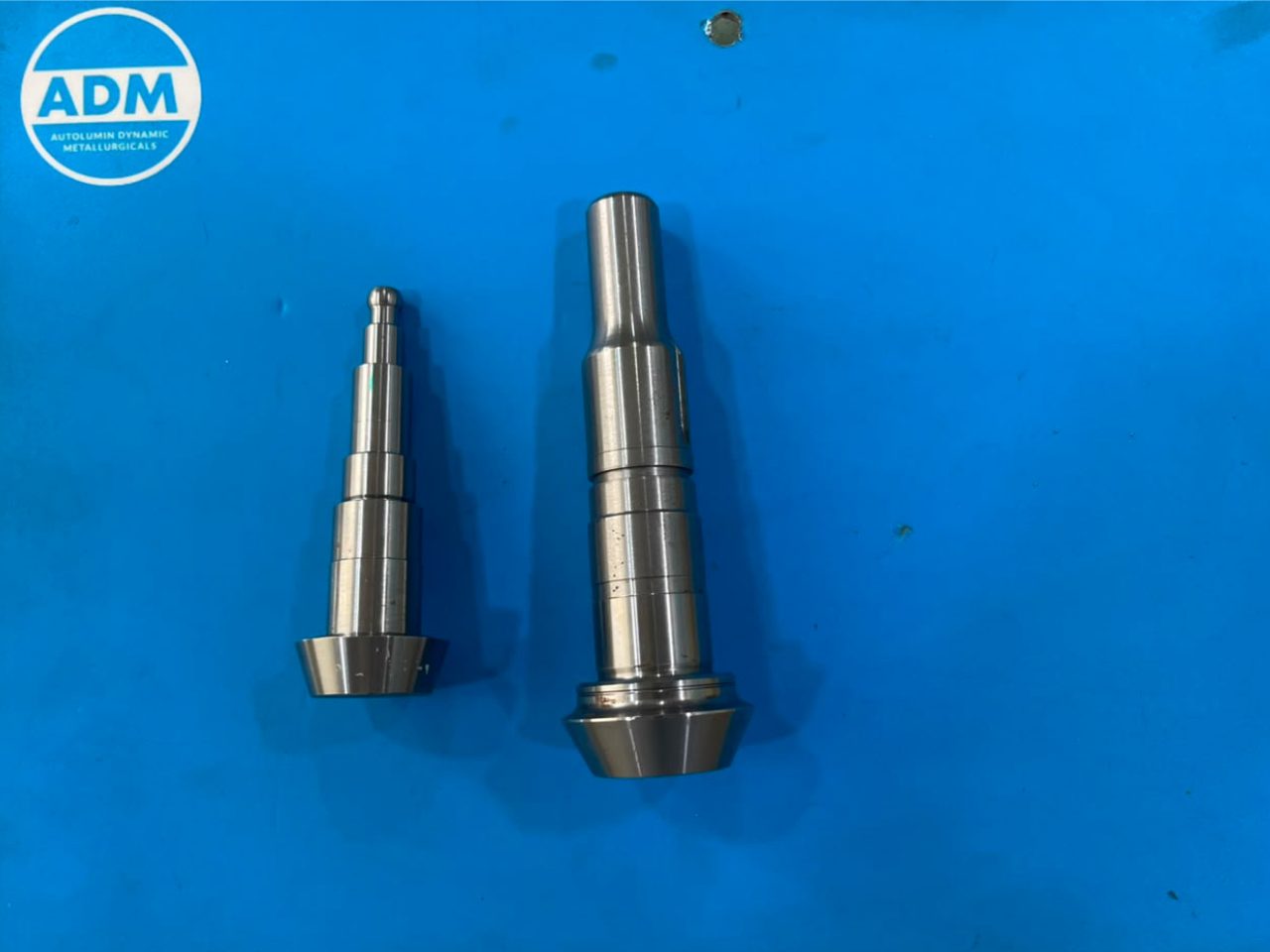

Pinion
Precision-machined pinion shafts turned and ground to gear-grade tolerances, produced on the same in-house CNC line that finishes our castings.
SPECIFICATION
REV. C
PROCESS
CNC Machined
ALLOY
Alloy steel / EN series
WEIGHT RANGE
0.1 - 1.0 kg
TOLERANCE
IT6 - IT8
FINISH
Turned / Ground
CERTIFICATION
IATF 16949
Application
Where it fits
The pinion transmits torque within a gear train. Journal concentricity, surface finish and hardness govern gear mesh, noise and service life.
Why CNC
Process rationale
In-house CNC turning and grinding hold the tight concentricity and finish a transmission component demands, with the same documentation discipline as our cast parts.
Validation
How we prove it
Runout and concentricity checks, surface-finish measurement and hardness testing back every lot with full traceability.
