ADM-GT-06 · HPDC
ADM-GT-06
HPDC
Solar energy
Grid Tie Inverter Base

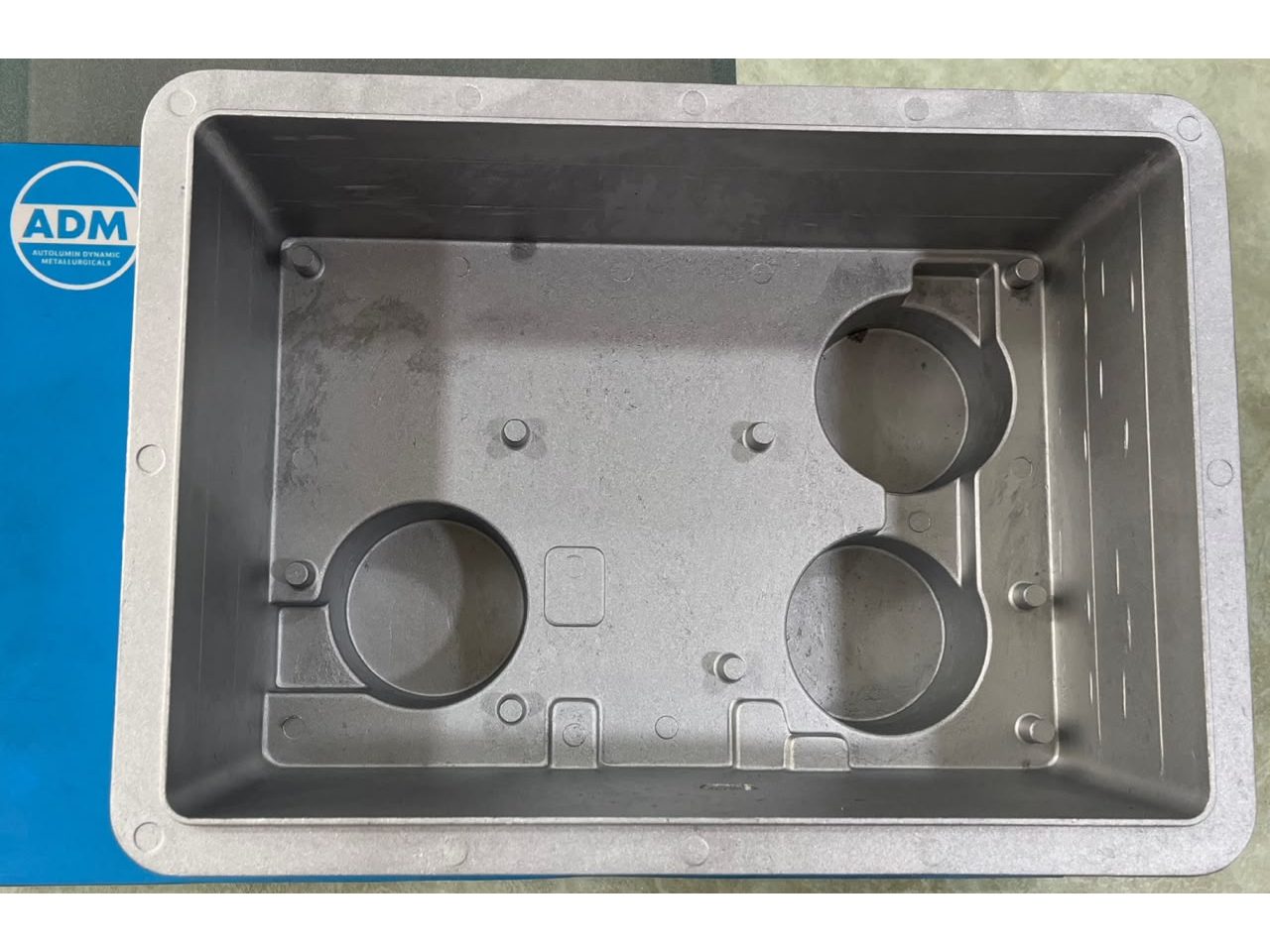

A high-pressure die-cast heatsink base for a 2.03 kW grid-tie solar inverter, with deep integral cooling fins, cast-in port markings and machined mounting interfaces.
SPECIFICATION
REV. C
PROCESS
High-Pressure Die Cast
ALLOY
ADC12
WEIGHT RANGE
2.0 - 8.0 kg
TOLERANCE
CT4 - CT6
FINISH
Machined / Powder-coat ready
CERTIFICATION
IATF 16949
Application
Where it fits

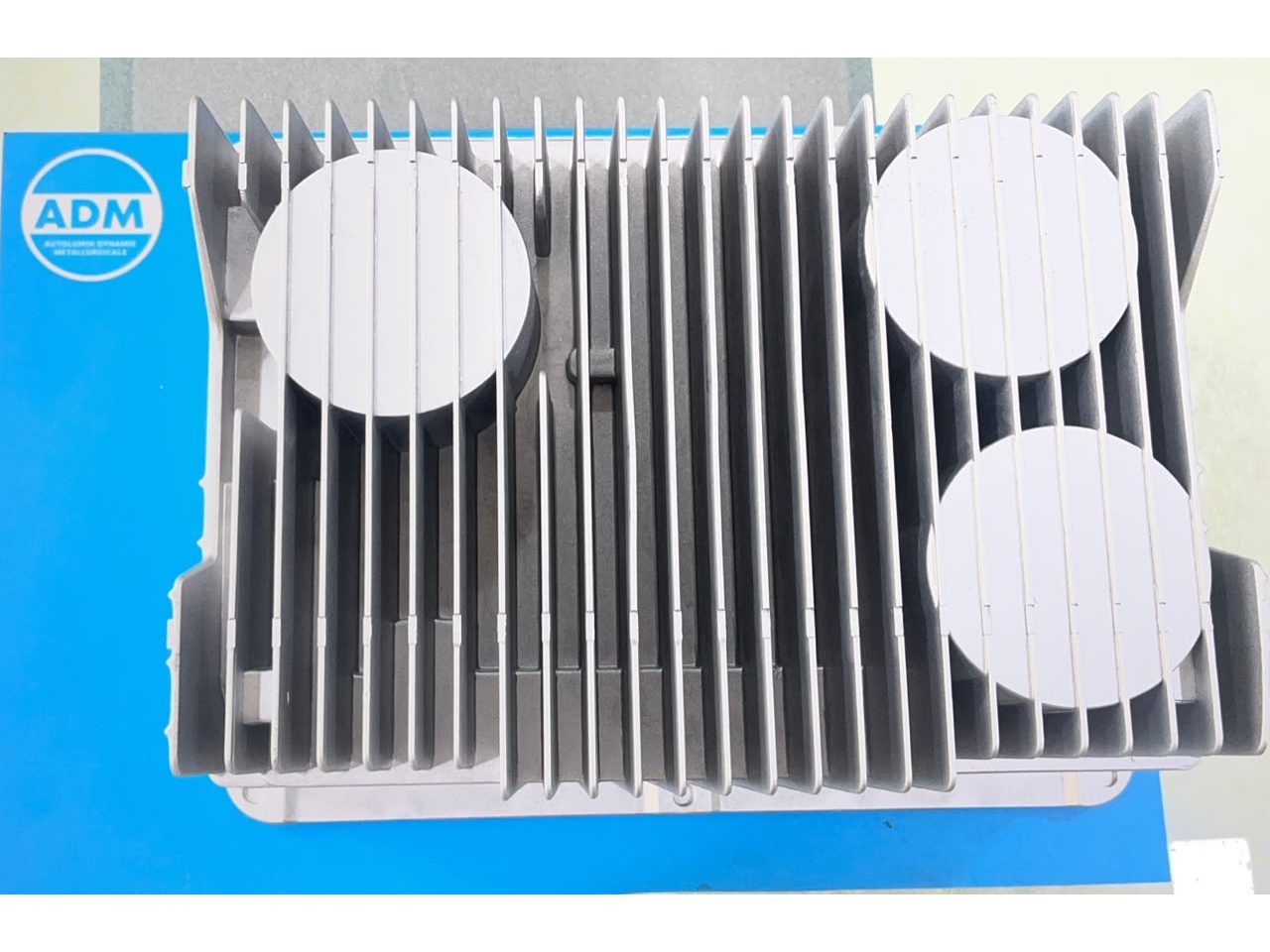

The base carries the inverter power stage and dissipates its heat through the finned underside. Fin integrity, flatness under the power modules and consistent wall sections drive thermal performance.
Why HPDC
Process rationale
High-pressure die casting forms the thin, deep cooling fins and fine cast-in detail this part needs net-shape - geometry that would be uneconomical to machine.
Validation
How we prove it
Dimensional verification on CMM, thermal-interface flatness checks and in-process SPC accompany PPAP sign-off.
