ADM-BC-01 · LPDC
ADM-BC-01
LPDC
Braking

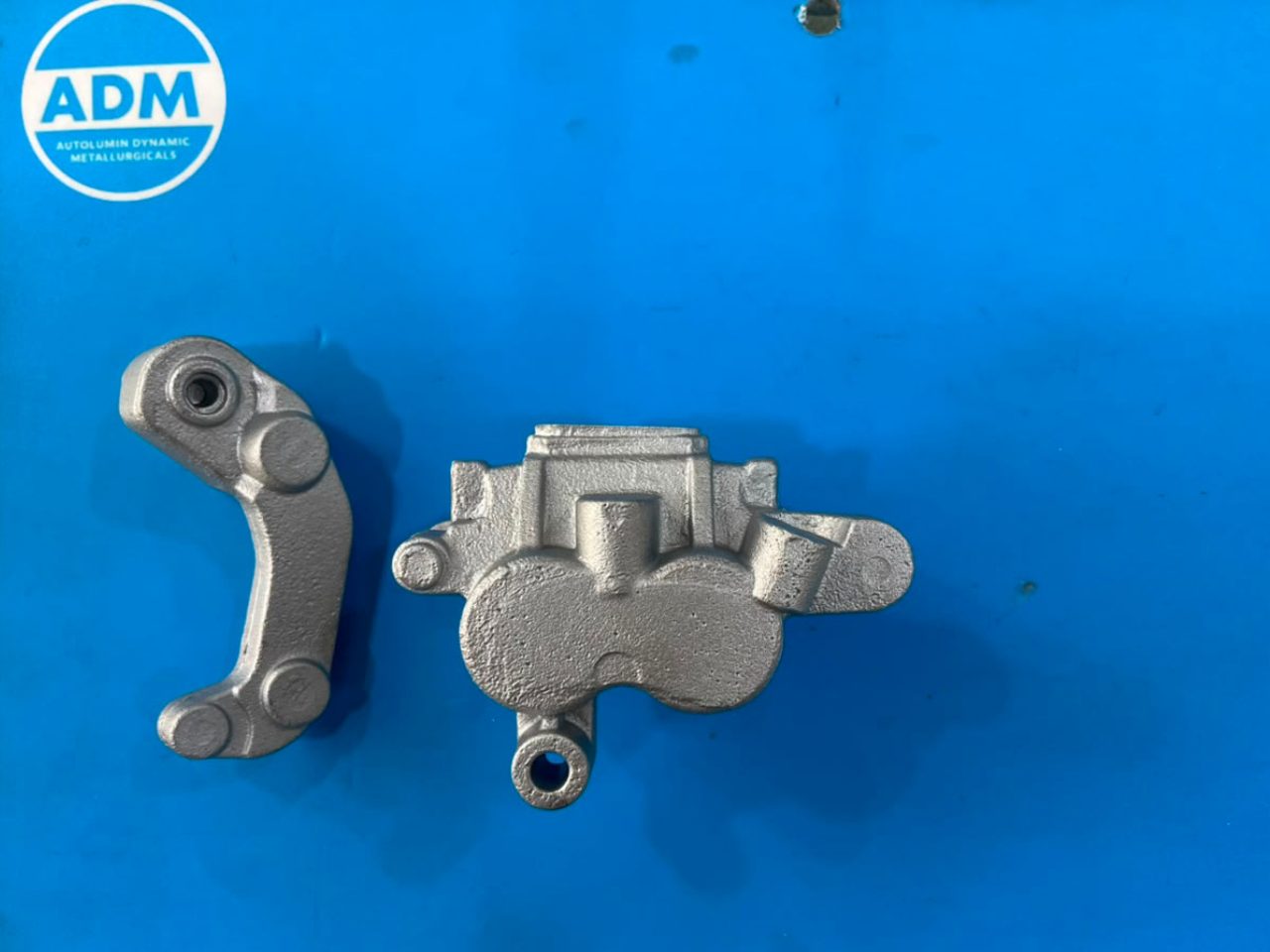

Brake Caliper
A low-pressure die-cast brake caliper body and carrier bracket engineered for the density and integrity that safety-critical braking demands - supplied machined and validated against your drawing.
SPECIFICATION
REV. C
PROCESS
Low-Pressure Die Cast
ALLOY
A356 / T6
WEIGHT RANGE
0.8 - 4.5 kg
TOLERANCE
CT5 - CT7
FINISH
Machined / Shot-blast
CERTIFICATION
IATF 16949
Application
Where it fits
The caliper body clamps the brake pads against the disc under high hydraulic pressure and thermal load. Porosity-free walls and precise bore geometry are non-negotiable.
Why LPDC
Process rationale
Low-pressure die casting gives controlled fill and high density, minimising porosity for pressure-tight, fatigue-resistant safety parts.
Validation
How we prove it
X-ray porosity checks, CMM dimensional verification and hardness testing back every batch, with full PPAP traceability.
